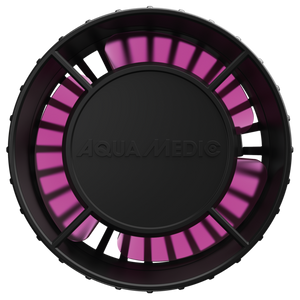

AQUA MEDIC SMARTDRIFT
KEY FEATURES
– Control and programming via App (iTunes and Google Playstore) or manually via
the controller
– Magnetic holder for glass thickness up to 12 mm
– Simultaneous control of several pumps possible
– Multiprogramming of pumps via master-slave or cross-flow possible
– Different flow patterns can be set
– New flow pattern due to innovative impeller technology ensures extreme smooth
running
– Polished ceramic shaft and bearings for quiet operation and low maintenance
– Power-saving D/C motor 24 V, high efficiency
– 0 – 10 V connection for external control options
– 24 V safety voltage, incl. transformer 100 – 240 V / 50 – 60 Hz
TECHNICAL DATA
Type SmartDrift 3.1
For aquaria up to 300 l
Capacity adjustable up to 4,600 l/h
Power consumption 3 – 15 watts
Power supply pump 24 V
Power supply transformer 100 – 240 V / 50 – 60 Hz
Protection rating IP X8
Dimensions app. ca. 55 mm, Ø 65 mm ca.
Magnet holder for glass thickness up to 10 mm
TECHNICAL DATA
Type SmartDrift 7.1
For aquaria up to 800 l
Capacity adjustable up to 10,500 l/h
Power consumption 8 – 25 watts
Power supply pump 24 V
Power supply transformer 100 – 240 V / 50 – 60 Hz
Protection rating IP X8
Dimensions app. ca. 65 mm, Ø 75 mm
Magnetic holder for glass thickness up to 12 mm
TECHNICAL DATA
Type SmartDrift 11.1
For aquaria up to 1.500 l
Capacity adjustable up to 16,000 l/h
Power consumption 10 – 35 watts
Power supply pump 24 V
Power supply transformer 100 – 240 V / 50 – 60 Hz
Protection rating IP X8
Dimensions app. ca. 70 mm, Ø 85 mm
Magnet holder for glass thickness 15 mm
